Introduction of Wall Mounted Integrated DC EV Quick Charger
Wall Mounted Integrated DC EV Quick Charger is mainly used for electric vehicle fast charging. Products can be installed outdoors, with waterproof, dustproof design IP54. This DC fast charging station has charging interface, man-machine interface, communications, billing and other parts, modular design, easy installation, operation and maintenance and simple, and the charger with the use of electric vehicles outdoor DC fast charge ideal choice.
1. Wall Mounted Integrated DC EV Quick Charger adopt intelligent module, CPU module built intelligent management, with manual / automatic dual control ;
2.Distributed control system, a single module failure does not affect system operation ;
3.Module efficiency up to 95%;
4.Charging module has a sleep function, based on the number of modules automatically select the size of the load current to start, so that the module and efficient operation ;
5.Charging module uses a unique full isolation dust structure, built-in cooling fan with intelligent speed control, and can automatically adjust the fan speed according to the load operation, to extend the life of the fan;
6.Acceptable remote trip command to achieve the emergency stop function.
7.Charging module comes with APFC function, power factor of 0.99, the total harmonic current distortion THD <5%charging
Wall Mounted Integrated DC EV Quick Charger consists of charging modules, monitor, smart meter, HMI, communication module, charging connector, management and cabinet.

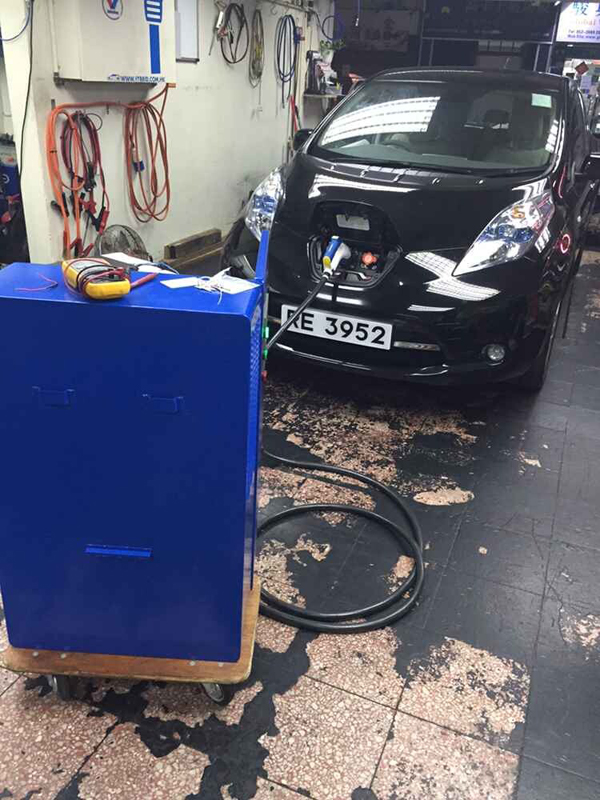

Wall Mounted Integrated DC EV Quick Charger offers Electric Vehicle owners an opportunity to charge their car safely and quickly. A typical electric car with 24kWh battery pack may be charged as quickly as 20 minutes to get up to 80% of its capacity.
For example, electric vehicle's battery capacity is 30KWH, so it needs 30KWH to charge 100%. if you use our 30KW EV charger, it needs 30KWH/30KW=1 hour to fill 100%.
it needs 30min to charge 50%. it needs15min to charge 25%.
different output power of EV charger, different charging speed.
The Charger combines industry standardization with advanced charging technology to support next-generation electric vehicles. Seamless integration with several payment & billing platform solutions enable easy and secure payments via station payment terminals and RFID card.
|
|
content |
remark |
|
Machine Index
|
Full load efficiency |
≥95% |
|
OHZ~20MHz clutter VP-P |
0.20% |
|
|
Current unaverage in parallel |
≤5% |
|
|
insulation strength (V) |
2000VAC/50Hz |
|
|
Insulation resistance(MΩ) |
10 |
|
|
Power Surge |
no |
|
|
Module load indication |
LED Display output DC current LED10 setion |
|
|
Output current display accuracy |
≤±10% |
|
|
Communication Interface |
CAN2.0B |
|
|
Environmental Indicators |
Ambient temperature |
-25~55 ℃ |
|
Humidity |
≤90%(40±2 Celsius) |
|
|
Altitude |
1500m |
|
|
Electromagnetic Compatibility |
EN55022 CLASS A |
|
|
Input indicators |
Line Voltage(VAC) |
380 |
|
Voltage Type |
AC three-phase four-wire |
|
|
Frequency(HZ) |
45~55 |
|
|
Power Factor |
0.99 |
|
|
Current THD value |
≤5% |
|
|
Input undervoltage protection value(V) |
323±5V |
|
|
Input undervoltage protection value(V) |
323±5V |
|
Output Indicators |
Nominal output voltage(V) |
700V |
|
Output Current(A) |
0~100A |
|
|
Regulation accuracy |
≤0.5% |
|
|
steady current accuracy |
≤1% |
|
|
Ripple Peak factor |
≤0.5% |
|
|
The output voltage range(V) |
600~750V |
|
|
Short circuit current(A) |
≤30A |
|
|
Output Power |
0kW~50kW |
|
|
Mechanical indicators |
packaging |
Wooden packing |
|
Dimensions(W×H×D) |
544×88×430(Rectifier module) 2260×600×600(System Cabinets) |
|
|
Module weight |
13Kg |
|
|
System Weight |
<160Kg |
|
|
protection grade |
IP21 |
|
|
other |
Parallel Extensions |
≤6 |
|
Cooling |
Air Cooled |
