Mine Diamond Locator Underground Water Detector

Introduction of Mine Diamond Locator Underground Water Detector

Mine Diamond Locator Underground Water Detector use natural electric field and resistivity parameter produced by different of the geologic structure. It is widely using in prospecting metal minerals, non-metal minerals, underground water prospecting etc. Working area is from large to several square kilometer to small to several square, especially for mountain area and city prospecting.
Compare with traditional electric prospecting instrument, our Mine Diamond Locator Underground Water Detector have those advantages:
(1) Do not need power supply, use natural electric field, through special amplify method it just need 20 meters receiver pole to complete survey.
(2) 2 people is enough to finish the work with high efficiency
(3) Light weight less than 5KG, easy to bring.
(4) Printing all kinds of curve immediately with the portable printer and analyzing at the same time. You can adjust and change survey dispose.

Feature of Mine Diamond Locator Underground Water Detector

1.The Mine Diamond Locator Underground Water Detector only need one person to finish indoor and outdoor work--Do not need manual power supply,small cubage,light weight,carry about,high efficiency and exact address. It get over the default that traditional equipment have such as need many people to work together, heavy weight, complicated operation, low working efficiency and long lines.
2.Press one button to finish all the survey operations--Machine is automatic control by micro PC and Easy operation. A press one button can finish all the operation. It does not need especial knowledge. When the survey is finished, press the button to display the curve and you can analyze at the same time.
3.High anti-jamming capability--You can get the good curve in the noise road and high electric jamming area for signal via frequency selector and digital processing.
4. Get survey parameter through Multiple-frequency, Multi-aspect and multi-measurement--It can survey in different position, do fixed point survey, solve same special geophysical problem and gather multi-measurement parameter through different kinds of survey method.
5.Widely application and flexible using--Using for locator underground water, minerals and solve engineering geophysical problem and geophysical disaster. Working area is from large to several square kilometer to small to several square, especially for mountain area and city prospecting.

Specifications of Mine Diamond Locator Underground Water Detector

5 inch LCD screen, support 240*128 dot matrix
·Intelligent controller, 22MHz frequency
·High sensitivity, high impedance, differential input probe
·Tri-band beneficiation technology
·50Hz/60Hz filtration technology, eliminate frequency interference
·Save up to 10 groups of measurement data, each measurement data contains up to 16 data
·Simple time display and temperature display
·Support for external serial printer (special type)
·Built-in battery 12V/1.2AH
·Support two kinds of chargers: AC-DC 12V charger and DC 12V dedicated car charger

Accessories of Mine Diamond Locator Underground Water Detector

Mine Locator (including charger) 1 unit
Special printer (including charger) 1 unit
Measuring electrode 1 pair
10m cable 2 pieces
Conversion cable 1 piece
Print paper 2 volumes
Instrument strap 1 piece
Operation Manual 1
Accessories 1 set Pictures of

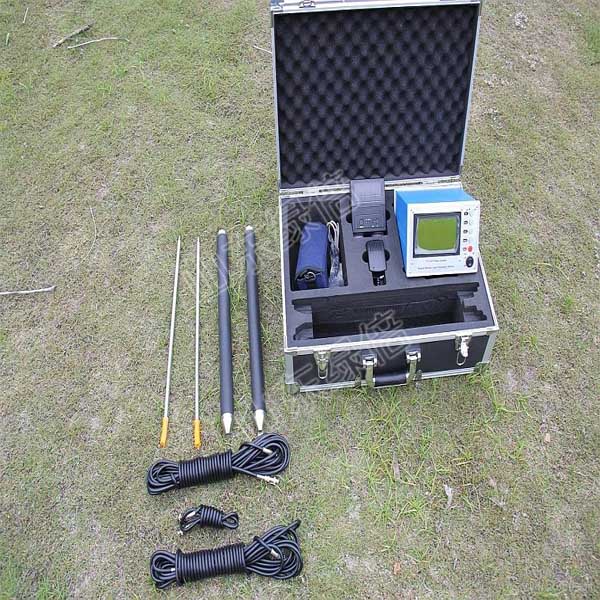

Picutures of Mine Diamond Locator Underground Water Detector
