Introduction of Composite Gas Detector with UK sensor
Description of Composite Gas Detector with UK sensor
The normal gases detected are CO, H2S, O2, LEL (CH4) while it can be set to monitor other four gases, such as SO2,NO2, H2S and NH3. gas leak detector has large LCD screen and two instant alarms with audio/visual and vibratory indicators, making it a favorite indicator for operators working in demanding industrial environments.
Features of Composite Gas Detector with UK sensor
• Compact, small and lightweight design
• Two instant alarms with audio/visual and vibratory indicators
• Large easy to read display of emblems, instantaneous value, peak value, TWA and STEL.
• Self test function: Self-testing upon start up or need for display, battery, sensor and alarm
• Warning Indicator: regular flashing light and audible alarm.
• Up to 4 gases design
Techinical data of Composite Gas Detector with UK sensor
1. STEL and TWA monitoring
2. Atmosphere monitoring
3. Monitoring for cleanliness of environment
4. Petroleum and chemical plant
5. Entering of sealing space
6. Quick respond for dangerous substance/ chemical weapon
7. Industrial paints
8. Leakage detecting
9. IAQ monitoring of indoor air quality
10. Soil pollution monitoring
|
Range
|
H2S: 0-100ppm
CO: 0-999ppm
O2: 0-30%VOL
Combustible gas (CH4): 0-100%LEL
|
|
Calibration
|
Automatical calibration and zero
|
|
Sensor
|
Catalytic combustion type, electrochemical sensor (with temperature compensation), PID sensor
|
|
Responding
|
T90 < 30s
|
|
Alarms
|
Flashing wide-angled LED alarm light and LCD reading; 90dB impulse output
|
|
Display
|
LCD display of gas reading and condition, display TWA and peak value when needed
|
|
Ambient environment
|
-20—50℃, 5—90%RH (no condensation)
|
|
Power supply
|
3.6V Li-ion chargeable battery can work 200 hours
|
|
Enclosure
|
compact , durable ruggedized ABS shell
|
|
Size & Weight
|
126×66×32(mm), 220g
|
|
Explosion Grade
|
EX ibⅡCT3
|

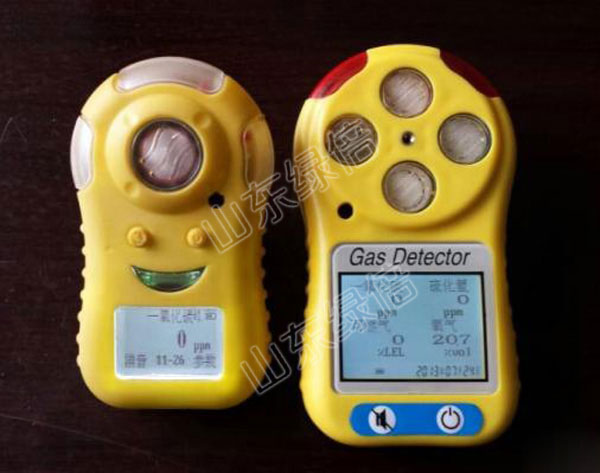

Photos of Composite Gas Detector with UK sensor
因产品生产批次、具体型号不同，以上图片仅供参考，详情可联系我们的销售人员进行具体核实。
PHOTOS OF Composite Gas Detector with UK sensor
