Introduction of GAXT-H Hydrogen Sulfid Gas Detector

Description of GAXT-H Hydrogen Sulfid Gas Detector

Hydrogen sulfid gas detector is a portable single gas detector with intrict safety ( detector hereinafter ), continuously monitor the concentration of gas.

This detector is applied for hydrogen sulfid leak detection, rescue, and also applied in the surroundings such as underground pipe and mine, to keep the workers safe.

The cover of the hydrogen sulfid gas detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection.

Features of GAXT-H Hydrogen Sulfid Gas Detector

1.Reliable and durable fixed life by the imported sensor

2.Automatical calibration and zero-set

3.Apparent and Clear Display English menu, displaying real time and battery capacity, low battery indication and automatic turn-off for low voltage

4.Rapid and effective warning with audible alarm, and extremely bright visual light alarm and vibrating alarm as standard.

5.Advanced self-test of complete functions automatically when turned on

6.1000 record capacity

7.Alarm for sensor failure

8.Password management to avoid wrong operation;

9.Advanced self- calibration for accuracy.

Parameters of GAXT-H Hydrogen Sulfid Gas Detector

Product anme

Hydrogen sulfid gas detector

Model

GAXT-H

Gas detected

Hydrogen sulfid gas

Range 0-100ppm

Resolution

1ppm

Accuracy

3% F.S.

Response

T90<30s

Operating temperature

-30 to +50 degree

Humidity

<95% RH non-condensation

Voltage

DC3.7V Li-ion battery 1200mAh

Charging time

4h to 6h

IP grade

IP66

Weight

About 120g(including battery)

Dimension

102mm*56mm*26mm

Duration of operation

Flammable gas<8h(non-stopped),toxic gas<300h(non-stopped)

Indication

Large STN LCD indicates real time and system state

Alarm indication

Wide-angled light emitting diode,85db buzz(the frequency of buzz depends the density),vibrating

Fault indication

Indications of Zero point drift and sensor failure

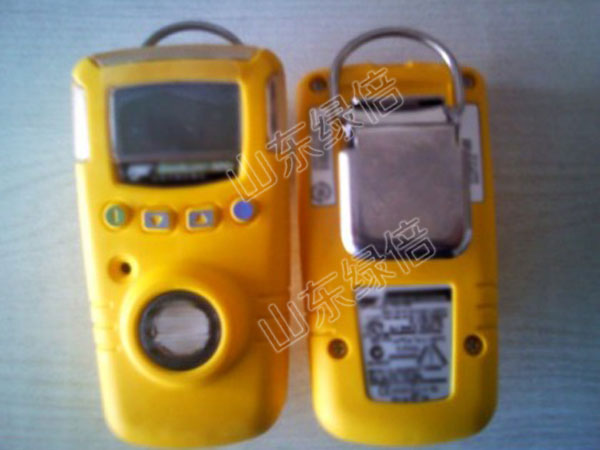

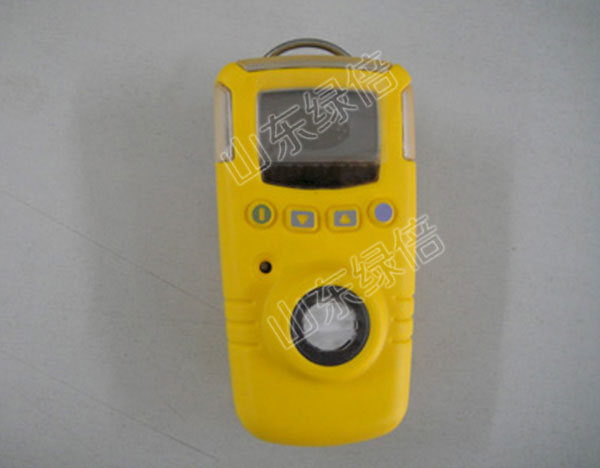

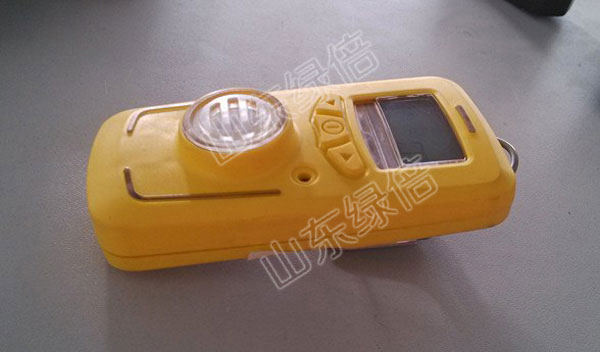

Photos of GAXT-H Hydrogen Sulfid Gas Detector

GAXT-H Hydrogen Sulfid Gas Detector


GAXT-H Hydrogen Sulfid Gas Detector


GAXT-H Hydrogen Sulfid Gas Detector


因产品生产批次、具体型号不同,以上图片仅供参考,详情可联系我们的销售人员进行具体核实。
