Basic parameters of 14 Seats Solar Powered Electric Car
|
|
DIMENSIONS AND MASS
|
Size ( Length * width * height ) (mm)
|
5150 x 1490 x 2000
|
|
Tread ( Front / Back ) (mm)
|
1225/1300
|
|
Wheelbase (mm)
|
2760
|
|
Minimum ground clearance (mm)
|
150
|
|
Allowable passenger ( people )
|
14
|
|
Equipment quality (kg)
|
1295
|
|
PERFORMANCE
|
Maximum speed (km/h)
|
25
|
|
The maximum gradient (%)
|
15 (full The slope length is less than or equal to 500m )
|
|
Minimum turning radius (m)
|
6.5
|
|
Mileage (km)
|
(100+20 Solar energy )
|
|
braking distance (m)
|
Less than or equal to 6
|
|
Charging time ( Discharge rate 80%)(H)
|
6-8
|
|
Product configuration
|
|
ELECTRICAL
SYSTEM
|
electric
moto
|
type
|
DC series
|
move
Power
electric
pool
|
type
|
|
Rated voltage(V)
|
72
|
Number ( block )
|
|
Rated power(kw)
|
6
|
Voltage (V) /block
|
|
Rated speed(RPM)
|
2800
|
capacity (Ah) /block
|
|
Electricity
charge
machine
|
type
|
Together with car / Intelligence
|
Motor controller
|
|
The maximum output current(A)
|
Thirty
|
Lighting and signal system
|
|
input voltage(V)
|
Two hundred and twenty
|
|
output voltage(V)
|
Seventy-two
|
Meter
|
|
CHASSIS AND CONFIGURATION
|
Frame
|
Trapezoidal edge beam type bearing structure, electrophoresis paint double anti rust treatment
|
|
Suspension system
|
Front
|
McPherson independent suspension
|
|
Back
|
Rear axle, The main reduction ratio: Twelve , The multi leaf spring, with rear shock absorber
|
|
steering system
|
Rack and pinion steering machine,with electric power steering system (EPS)
|
|
braking system
|
Four wheel hydraulic drum brake system, a mechanical rear parking brake function
|
|
drive system
|
Direct drive motor for rear axle
|
|
Wheel size
|
155R12LT
|
|

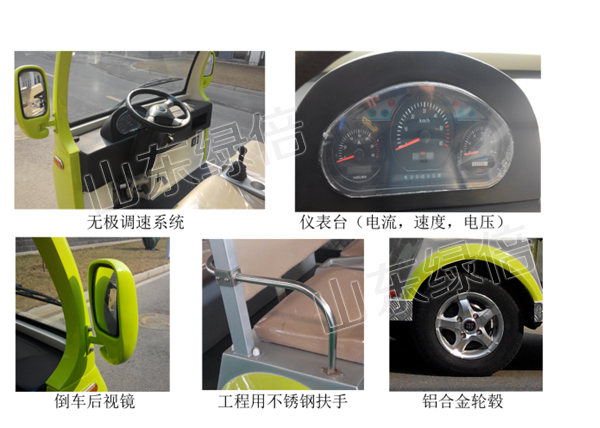

BODY ACCESSORIES
|
Body structure
|
Open type high strength glass steel body, with front windshield glass
|
|
Chair
|
Split seats, with stainless steel handrails on both sides
|
|
Dashboard
|
Ignition switch, combination meter and reversing switch, walking, CD Machine
|
|
Solar photovoltaic cell
|
750W
|
|
MORE OPTIONS
|
Body color
|
According to user requirements.
|
Rainproof curtain
|
|
The car fire extinguisher
|
Optional ( ABC type 1kg )
|
Solar photovoltaic cell
|
|
LED Display
|
Front roof / Back
|
Power battery
|
|
Public-address system
|
Optional
|
|
