Introduction of DONGFENG Muti-function Dust Suppression Truck

Introduction of DONGFENG Muti-function Dust Suppression Truck

DONGFENG Muti-function Dust Suppression Truck is formed by Chassis, spraying system with arm, liquid tank body, tank insulation heating device, hose insulation heating device, hydraulic control system, spraying control system, electrical control system, monitoring control system.
Apply to the coal dust pollution of rail transportation. Can be widely used in other bulk material and dust pollution during transport anti-slag yard, coal storage yard, construction sites, coal dust, fixing sand, steel building material, cement and other various open yard, ecological revetment and so on.
Other chassis optional: DONGFENG/ SINOTRUK/ FAW/ FOTON/ BEIBEN/ JAC/ SHACMAN/ HINO/ HYUNDAI
Other drive type optional: 4x2/ 6x4/ 8x4/ 4x4/ 6x6
RHD or LHD is optional.

Parameters of DONGFENG Muti-function Dust Suppression Truck

Vehicle Description

Vehicle model

Muti-function Dust Suppression Truck

Overall dimensions (mm)

 8310x2500x3800

GVW (kg)

Appro x 16000

Tank capacity (L)

8000

Mass in working order (kg)

Appro x 6805

Max. Speed (km/h)

90

Chassis Description

Chassis Model

DFL1120B

Cab

Standard cabin with Left hand drive

Color

Optional

Allowable person in cab

2/3

Wheel base (mm)

4500

Front/Rear track base (mm)

1940/1860

Front/Rear overhang (mm)

1245/2845

Number of axles

2

Axle

Front axle

6000

Rear axle

10000

Traction system

4*2

Operation control system

Power steering

Braking system

Full air

Electric system

24V

Transmission

5 speed

Spring plate

8/13

Tire specification

10.00R20

Tire quantity

6+1

Engine Description

Engine model

B190-33

Emission standard

Euro 3

Exhaust/output

4580/140

Horse power

190

Up-parts Description

Spraying Disatance (m)

80-200

Coverage Area (M2)

1700-12000

Total Power(kw)

37-147

Power Supply

3-Phase,380V/50HZ (or customized)

Fog Droplet Size(um)

30-300

Water Pressure(Mpa)

1.0-3.5

Horizontal Rotation Angle

320

Control Method

Remote control

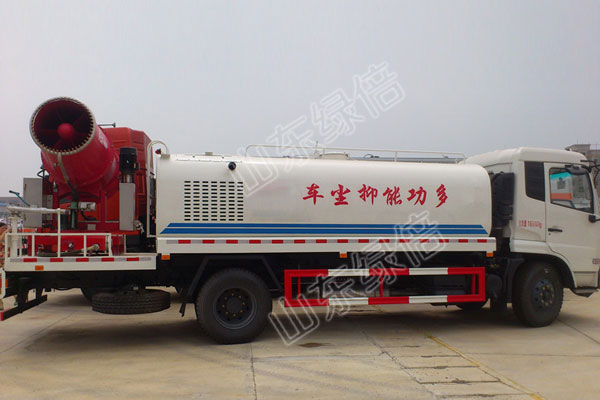

Pictures of DONGFENG Muti-function Dust Suppression Truck

DONGFENG Muti-function Dust Suppression Truck


DONGFENG Muti-function Dust Suppression Truck


DONGFENG Muti-function Dust Suppression Truck
